Add graphic overlay to images

This guide will show you how to add a graphic overlay to images of your products. For example to show incentives such as "Sale" or "Clearance".

1. Open eStore Setup from the main EQ toolbar:


2. Double-click a catalogue name to open the catalogue products.

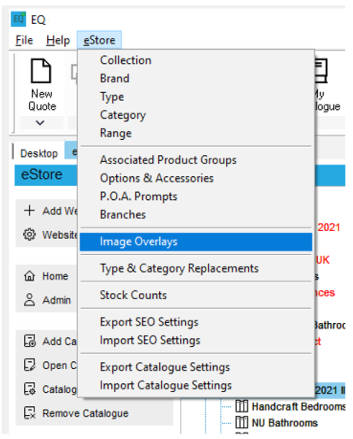

3. Click on the eStore menu at the top and select Image Overlays

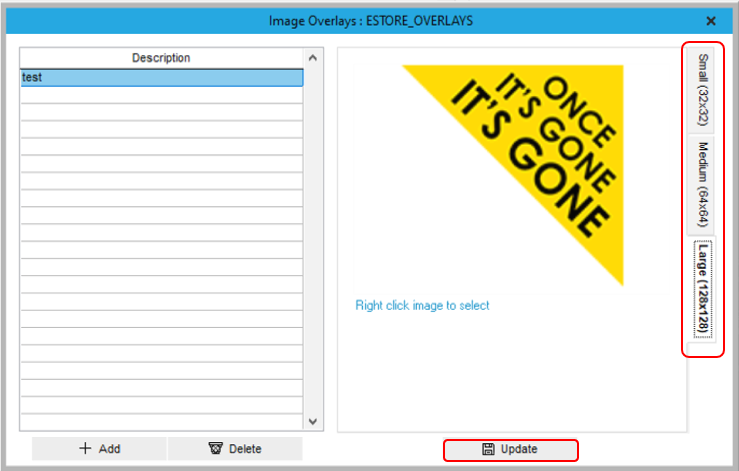

4. Use the Add button to add at least 1 graphic on each of the three tabs: Small, Medium, Large.

   The graphics should be png transparent images sized:

   • larger.png (128 x 128px)
   • medium.png (64 x 64px)
   • small.png (32 x 32px)

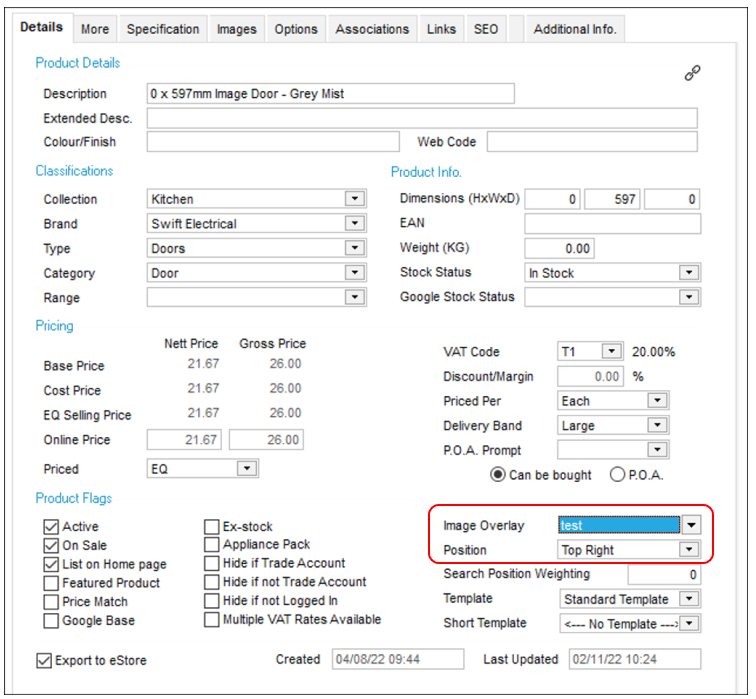

5. Select any catalogue products, on the Details tab go to the Image Overlay section shown:



   Select your chosen png graphic and adjust the Position.


6. Export to eStore to publish to the site.
